UNDERWATER INSPECTION REPORT

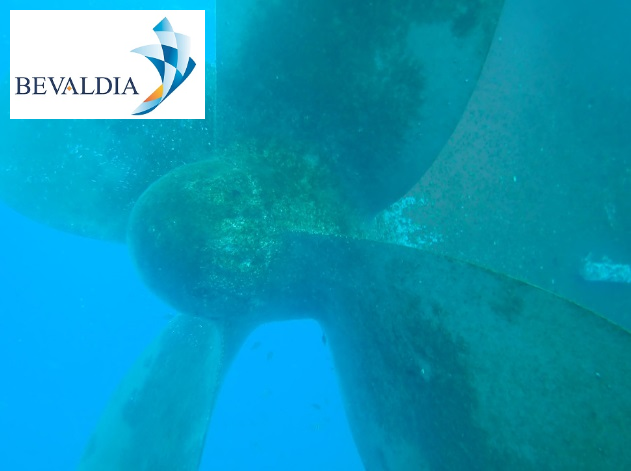

Vertical sides and curves were found fouled with barnacles and marine growth covering approx. 90% of the area with heavy density and with thickness of up to 2cm and were cleaned. Flat was fouled with barnacles and marine growth covering approx. 90% of the area with heavy density and with thickness of  0.5cm to 2cm and were cleaned. Four bladed fixed propeller was fouled with 100% salt and heavy sea grass with thickness of up to 0.3cm and was polished. No entanglements or leakage of oil was observed on the tail-shaft. Rope-guard was found in position. Sea chest gratings were found fouled with 80-100%  barnacles and were cleaned. All grids were in position including bolts and nuts with securing arrangement. No abnormalities were observed the bilge keels.  Weld joints found in good condition.



CASE STUDY DESCRIPTION

Underwater full hull cleaning, propeller polishing, photos before and after the operations.

CASE STUDY PHOTOS

BEFORE CLEANING

AFTER CLEANING

PROJECT DETAILS
