UNDERWATER INSPECTION REPORT

FLAT BOTTOM

No abnormalities were observed on the flat bottom: shell plating, welded seams and butts without deformations or signs of pitting were observed. Approx. 50% of the flat bottom found covered with barnacles up to 0.7cm thick

VERTICAL SIDES & CURVES

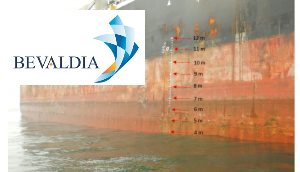

No abnormalities were observed on the vertical sides: shell plating, welded seams and butts without deformations or signs of pitting were observed. Approx. 40% of the vertical sides were found fouled with barnacles up to 0.7cm thick and approx. 25% fouled with seagrass up to 0.3cm thick.

SEA CHESTS GRATINGS (5 PCS)

Found in good condition: all grids were in position including bolts and nuts with securing arrangement. Approx. 20-30% fouled with barnacles which were cleaned.

PROPELLER & RUDDER

Due to high swell (approx. 4mtrs) inspection of the propeller and of the rudder was not possible.

CASE STUDY DESCRIPTION

Underwater fouling inspection, external cleaning of sea chest gratings

PROJECT DETAILS

Categories:
Location: Pointe Noire, Congo
